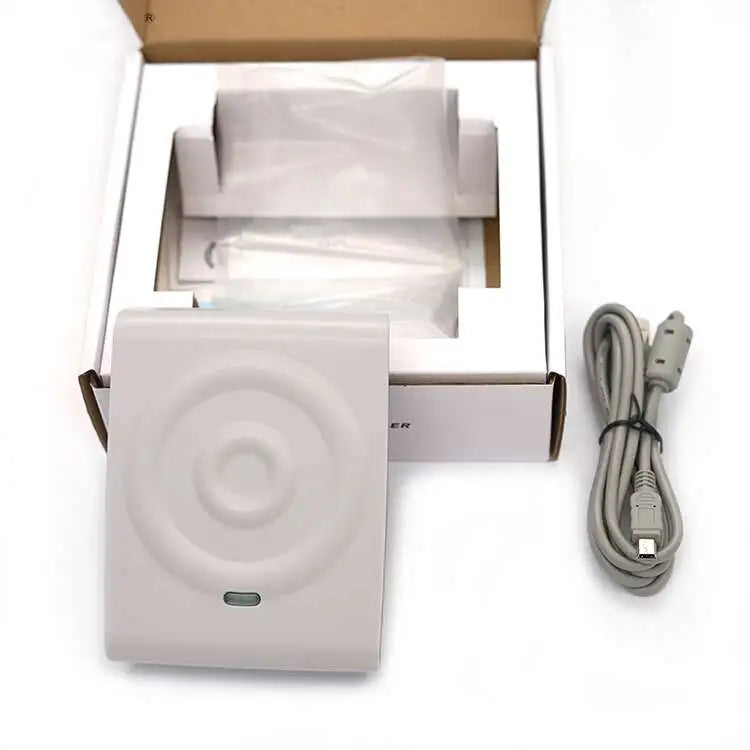

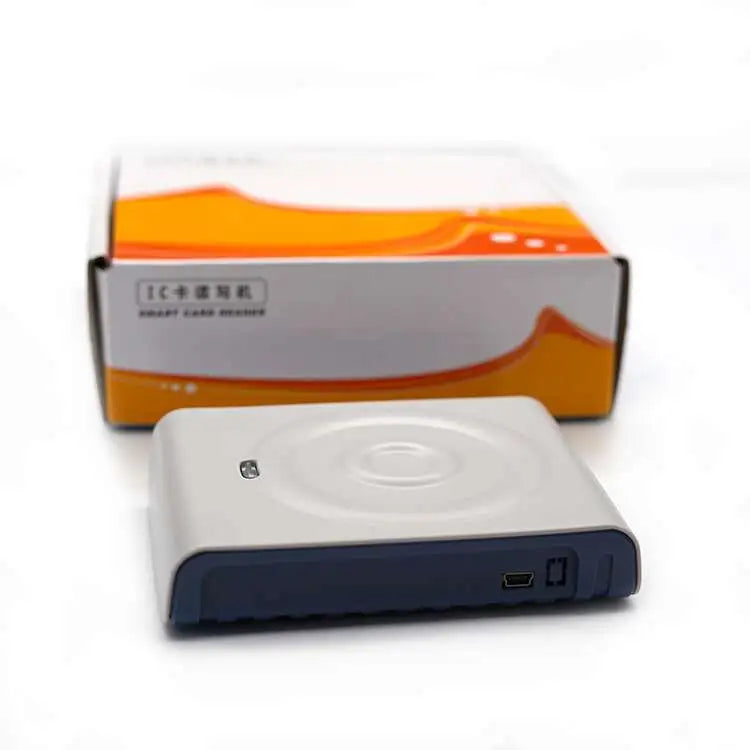

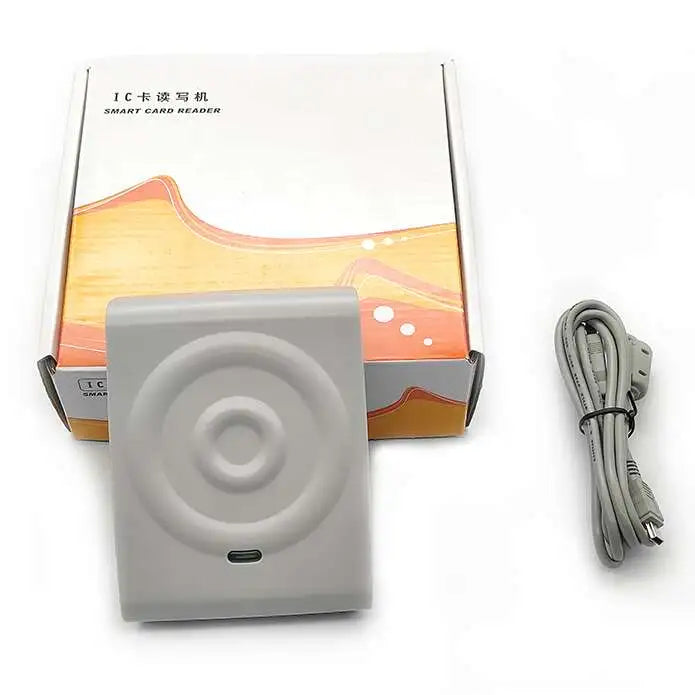

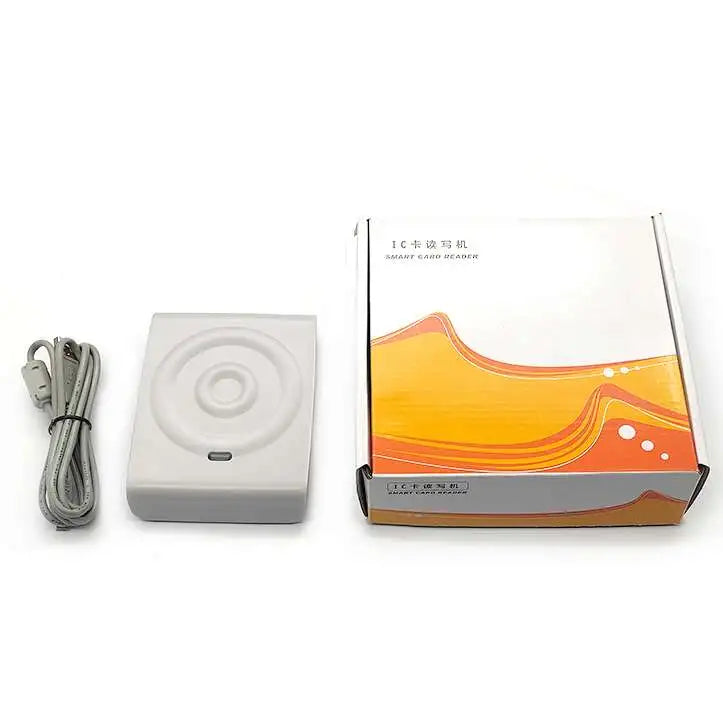

D8-U RFID Card Reader

The D8 includes USB port connection. It is used as a contactless smart card reader in generally, but it can be expanded dual Mode Smart Card Reader. Meantime D8 can adds 2-3  SAM cards for choice of consumer. It includes an antenna, LED and a buzzer. All the Mifare cards can be read and written. The ISO 14443 type A and B cards can also be accessed on request. It is mainly used in parking-meter, door-control, Health care—medical identification, transportation, access control identifications.

• Communication interface : USB Port
• Support Card Type : ISO/IEC 14443 TYPE A&B (Contactless Card) , ISO 7816 T=0 T=1 protocols, support popular memory cards in the market (Smart card interface).
• Power Supply Voltage : DC5V
• Power Supply Current : <100 mA
• Operating Distance (Contactless) : up to 5 cm , typical 2.5 cm
• Indicator: LED indicator indicating power or communication status
• Connecting Cable: 1.5M long connection communication line
• Operating System: Windows, Unix, and Linux
• Working Environment Temperature : -20°C ∼ +60 °C
• Working Relative Humidity : 20% ∼ 90%
• Dimensions : 123mm × 95mm × 27mm
